CO2 Sensor for HVAC: NDIR Demand-Controlled Ventilation

What an NDIR carbon-dioxide sensor measures

An NDIR carbon-dioxide sensor estimates CO2 in the air by measuring how infrared light is absorbed along an optical path. The sensor module may include an infrared source, chamber, detector, filters and signal-processing electronics. The NDIR principle is different from a metal-oxide gas response or an electrochemical cell, so the complete instrument specification still matters more than the label alone.

In a building, the useful measurement is the CO2 concentration at the sensor location over time. People are a common indoor source of CO2, which is why a rising reading can provide information about occupancy-related conditions. That information is useful for a ventilation-control strategy only when the sensor, zone, airflow and control sequence are designed together.

How CO2 sensing fits demand-controlled ventilation

Demand-controlled ventilation, or DCV, adjusts outdoor-air ventilation in response to changing demand rather than relying only on a fixed schedule. In an occupancy-related strategy, a CO2 sensor can act as one input: the control system observes the measured condition and may adjust the ventilation response according to its configured sequence. ASHRAE describes CO2 monitoring as one means of implementing DCV and notes that the approach can help avoid over-ventilation during periods of low occupancy.

The sensor does not directly count people. A reading is shaped by occupant activity, room volume, outdoor CO2, air mixing, supply and return paths, doors, leakage and the time since occupancy changed. The controller therefore needs a suitable sequence and sensible engineering assumptions. A sensor reading should not be turned into a universal rule such as one concentration being correct for every classroom, office, shop or meeting room.

Multiple-space systems need extra care. One sensor cannot represent every zone when rooms have different occupancy, airflow or mixing. ASHRAE highlights the importance of sensor number and location, variations in CO2 generation and the need to address contaminants that are not related to occupancy.

• Sensor measures CO2 concentration at its installed location.
• A building-control system interprets the signal through a defined DCV sequence.
• The sequence can be affected by zone layout, airflow, occupancy and outdoor conditions.
• Other ventilation and indoor-air requirements still need to be addressed separately.

Why CO2 is not a complete indoor-air-quality score

Carbon dioxide is one measured gas, not a summary of every pollutant in a building. ASHRAE states that indoor CO2 concentrations are not overall indicators of indoor air quality, although they can be useful when their relationship to IAQ and their limitations are understood. A CO2 sensor cannot, by itself, identify every particle, chemical, biological contaminant or combustion hazard.

The U.S. Environmental Protection Agency makes the same practical distinction for low-cost indoor monitors: they report only the pollutants or environmental factors for which they are designed. A CO2 monitor therefore should not be described as a smoke detector, carbon-monoxide alarm, medical device or universal IAQ monitor. A ventilation response based on CO2 also does not automatically remove pollutants that are unrelated to occupancy or that require source control, filtration or a different ventilation approach.

This distinction is especially important when a dashboard uses a single colour or score. A convenient interface can hide what the instrument actually measures. Read the sensor specification and the control documentation before treating a displayed value as evidence about the whole building.

Placement, calibration and outdoor baseline matter

A CO2 value is meaningful only in the context of how and where it was measured. ASHRAE identifies sensor performance, location and calibration as critical to drawing useful inferences. EPA also says indoor monitor accuracy and precision can be affected by placement, time in use, data processing, temperature, relative humidity and multiple contaminants.

For a room monitor, follow the instrument and project instructions. As a general indoor-monitoring principle, EPA recommends placing a monitor in the occupants’ breathing zone, allowing air to reach the inlet, and avoiding immediate placement beside a source, draft, HVAC vent or open window when that would distort the result. An HVAC control sensor may require a different engineered location, so a generic desk placement should not be copied into a control installation.

Outdoor CO2 is also relevant. Strategies that compare indoor and outdoor conditions need a suitable outdoor reference and valid assumptions. Air mixing, zone-to-zone transfer and changing outdoor conditions can make a simple comparison misleading. Calibration and maintenance should follow the instrument maker’s stated method and the building-control design; a changing number on a screen is not proof that a sensor is calibrated.

A practical checklist before choosing a CO2 sensor for HVAC

Start with the control question, not the sensor package. Decide whether the system needs a room-level indication, a commissioning measurement, a logged trend or an input to a specific DCV sequence. Then check whether the proposed NDIR instrument provides the required range, output, environmental operating limits, calibration method and maintenance information. Avoid choosing on the word NDIR alone.

Confirm that the sensor location represents the intended zone and that the control system has a defined response when the reading is unavailable, implausible or outside its expected range. Review the number of zones and whether one sensor could hide differences between occupied and unoccupied spaces. Finally, document what the sensor does not measure so that staff do not mistake it for a complete IAQ or safety system.

For readers comparing modules, the existing gas-sensor guide explains the broader difference between sensing elements and finished instruments. This page narrows that discussion to the building-ventilation application, where installation context and control logic are as important as the optical sensing principle.

Key takeaways

An NDIR carbon-dioxide (CO2) sensor measures CO2 and can support selected demand-controlled ventilation strategies. It does not count occupants directly, set one correct value for every building or describe complete indoor air quality. Sensor location, calibration, outdoor reference, zone design and the control sequence all affect interpretation. Treat the instrument as one part of an HVAC system, not as a replacement for a CO alarm, smoke alarm or broader IAQ assessment.

Frequently asked questions

About the image

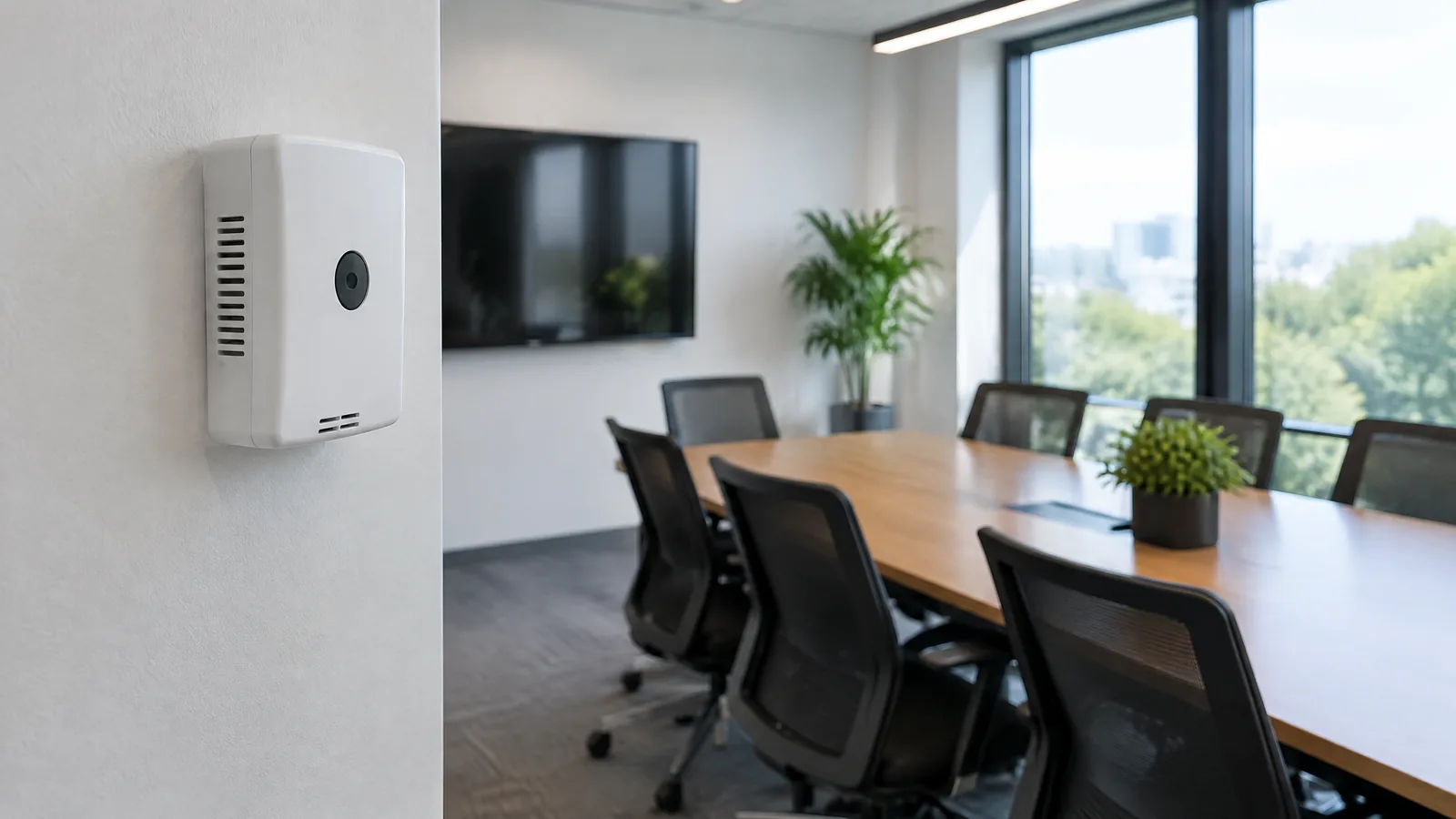

AI-generated editorial illustration; not an actual product or mission photograph.
